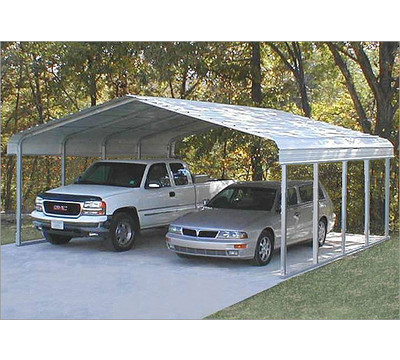

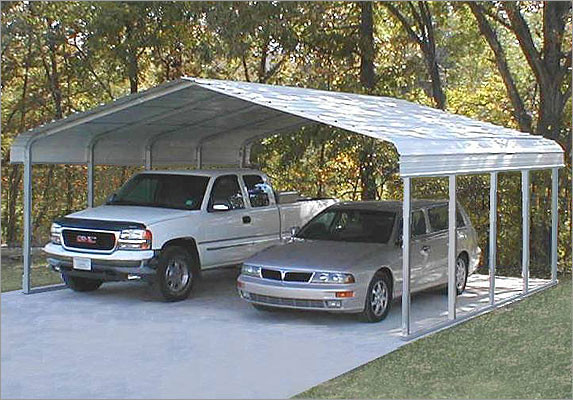

The steel framing system in this VersaTube Building Systems 24 x 10 ft Type 3 Truss Carport uses primarily 2 x 3 inch heavy gauge triple layer galvanized steel tubing that is resistant to rust, fire, termites and rot. It features a 3:12 roof pitch and engineered to address local ground snow and wind load conditions, silicon coating for easy cleaning, and 80,000 psi yield strength minimum. With 67 percent of all steel recyclable, this Carport is an environmentally-sound building system for consumers. It has patented slip-fit connections that contribute to the ease and speed of assembly. The quality low-maintenance finish resists stains, dirt retention, chalking and fading. The complete kit includes all framing and hardware, plus painted steel roofing, vinyl trim, and butyl caulk tape. This Carport is available different lengths. Choose from variety of colors.
|
|
|
|
|
|
|
|
|
|
|
-
Frame Type: A - Frame
-
Frame Materials: 2.00 x 3.00 inch heavy gauge galvanized steel tube
-
Frame Finish: Ivory, Tan, Burgundy, Charcoal, Hickory moss, White, Evergreen, Gray, Blue, Stone, Brown, Red
-
Cover Material: 29 gauge painted steel panel
-
Width: 24 ft
-
Cover Finish/Color: Ivory, Tan, Burgundy, Charcoal, Hickory moss, White, Evergreen, Gray, Blue, Stone, Brown, Red
-
Length: (20 - 60.5) ft
-
Shelter Usage: (2) Cars
-
Design Ratings: Wind, Rust, Fire, Termites, Rot
-
Legs: 10
-
Adjustable Height: No
-
Enclosures: No
-
Base: 24 x (20.00 - 60.50) ft
-
Trusses: With Truss
-
Includes: Anchors, Vinyl trim, Butyl tape
-
Height: 10 ft
-
Package Weight: 1456.00 - 4283.00 lbs
-
Package Size: 126.00 x 46.00 x (16.00 - 28.00) in
-
Installation Instructions
-
Installation Instructions
Product Overview & Specs
The steel framing system in this VersaTube Building Systems 24 x 10 ft Type 3 Truss Carport uses primarily 2 x 3 inch heavy gauge triple layer galvanized steel tubing that is resistant to rust, fire, termites and rot. It features a 3:12 roof pitch and engineered to address local ground snow and wind load conditions, silicon coating for easy cleaning, and 80,000 psi yield strength minimum. With 67 percent of all steel recyclable, this Carport is an environmentally-sound building system for consumers. It has patented slip-fit connections that contribute to the ease and speed of assembly. The quality low-maintenance finish resists stains, dirt retention, chalking and fading. The complete kit includes all framing and hardware, plus painted steel roofing, vinyl trim, and butyl caulk tape. This Carport is available different lengths. Choose from variety of colors.
- Heavy gauge triple layer galvanized steel tubing
- Silicon coating for easy cleaning
- Incorporates recycled steel
- Patented slip-fit connections
- Environmentally-sound building system
- 29 gauge painted steel panels
- 3:12 Roof pitch and engineered to address local ground snow and wind load conditions
- 80,000 psi Yield strength minimum
- Quality low-maintenance finish
- Includes all framing and hardware, plus painted steel roofing, vinyl trim, and butyl caulk tape
- Offered in various colors
- Available in wide range of length
|
|
|
|
|
Images
|
|
|
|
|
About VersaTube Building Systems
|
Authorized VersaTube Building Systems Retailer See all VersaTube Building Systems Carports
|
VersaTube Building Systems is a successful part of the carport manufacturing industry with two manufacturing facilities - one at their corporate headquarters in Collierville, TN and the other near Tempe, AZ. With a pre-engineered, ready-to-assemble shelter, building framing system and packaged kits, one is able to get the quality and flexibility they are looking for. Steel structures provide the ideal outdoor protection for your vehicles, tools and equipment, feed and livestock, or other possessions requiring a durable storage solution.
Their patented design and connection process is unique within the metal building industry - simplifying and reducing assembly time and cost; one is even capable of erecting the apparatus themselves without the need for outside contractors. VersaTube Building Systems's unique “Slip-Fit” design dramatically simplifies the installation process.
|
|
|
| Warranty |
|
Main Item 20 year manufacturer's warranty on paint
|
| Returns |
|
Main Item 30 day returns. No restocking fee.
|
|
