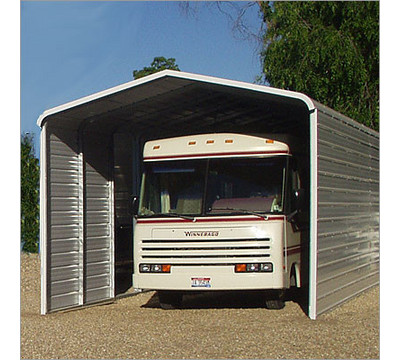

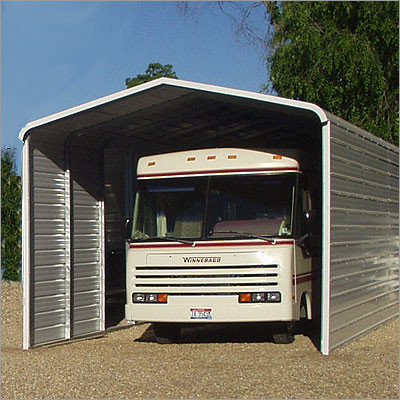

This VersaTube Building Systems 20 x 10 ft with Type 2 Truss Carport has heavy gauge galvanized steel tubing that can be configured to cover any area requiring shelter from the elements. Patented slip fit connections contribute to the ease and speed of assemble. It features a 3:12 roof pitch and engineered to address local ground snow and wind load conditions. Compact packaging makes for more cost-effective delivery and storage. With the added support of two trusses these can even stand up through toughest winters. It is available in an array of lengths and colors, you are sure to find the perfect size to fit any area requiring shelter from the elements.
|
|
|
|
|
|
|
|
|
|
|
|
-
Frame Type: A - Frame
-
Frame Materials: 2.00 x 3.00 inch heavy gauge galvanized steel tube
-
Frame Finish: Ivory, Tan, Burgundy, Charcoal, Hickory moss, White, Evergreen, Gray, Blue, Stone, Brown, Red
-
Cover Material: 29 gauge painted steel panel
-
Width: 20 ft
-
Cover Finish/Color: Ivory, Tan, Burgundy, Charcoal, Hickory moss, White, Evergreen, Gray, Blue, Stone, Brown, Red
-
Length: (20 - 60.5) ft
-
Shelter Usage: (1) Bus
-
Design Ratings: Wind, Rust, Fire, Termites, Rot
-
Adjustable Height: No
-
Enclosures: No
-
Base: 20 x (20.00 - 60.50) ft
-
Trusses: With Truss
-
Includes: Anchors, Vinyl trim, Butyl tape
-
Height: 10 ft
-
Package Weight: 1142.00 - 3122.00 lbs
-
Package Size: 126.00 x 46.00 x (16.00 - 28.00) in
-
 Installation Instructions
-
Installation Instructions
Product Overview & Specs
This VersaTube Building Systems 20 x 10 ft with Type 2 Truss Carport has heavy gauge galvanized steel tubing that can be configured to cover any area requiring shelter from the elements. Patented slip fit connections contribute to the ease and speed of assemble. It features a 3:12 roof pitch and engineered to address local ground snow and wind load conditions. Compact packaging makes for more cost-effective delivery and storage. With the added support of two trusses these can even stand up through toughest winters. It is available in an array of lengths and colors, you are sure to find the perfect size to fit any area requiring shelter from the elements.
- Heavy gauge triple layer galvanized steel tubing
- Incorporates recycled steel
- 3:12 Roof pitch
- Resists rust, fire, termites and rot
- Patented slip fit connections
- 80,000 psi Minimum yield strength
- 29 Gauge painted steel panels
- Easy to clean and assemble
- Finish resists stains, dirt retention, chalking and fading
- Available in variety of lengths and colors
|
|
|
|
|
|
Images
|
|
|
|
|
About VersaTube Building Systems
|
Authorized VersaTube Building Systems Retailer
See all VersaTube Building Systems Carports
|
VersaTube Building Systems is a successful part of the carport manufacturing industry with two manufacturing facilities - one at their corporate headquarters in Collierville, TN and the other near Tempe, AZ. With a pre-engineered, ready-to-assemble shelter, building framing system and packaged kits, one is able to get the quality and flexibility they are looking for. Steel structures provide the ideal outdoor protection for your vehicles, tools and equipment, feed and livestock, or other possessions requiring a durable storage solution.
Their patented design and connection process is unique within the metal building industry - simplifying and reducing assembly time and cost; one is even capable of erecting the apparatus themselves without the need for outside contractors. VersaTube Building Systems's unique “Slip-Fit” design dramatically simplifies the installation process.
|
|
|
